LS220H Dry Film Thickness Gauge

238.00 - 288.00 USD ($)/Set

Get a Price/Quote

Product Details:

Measuring Range 0.0-2000μm
Display 128×48 dot matrix LCD
Sensor Type Ruby fixed
Usage Measure coating on ferrous/non-ferrous substrates
Material Plastic
Size 101x62x28mm
Height 28 Millimeter (mm)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LS220H Dry Film Thickness Gauge Price And Quantity

Price Range 238.00 - 288.00 USD ($)/Set
Minimum Order Quantity 10 Unit

LS220H Dry Film Thickness Gauge Product Specifications

Usage Measure coating on ferrous/non-ferrous substrates
Product Type Dry Film Thickness Gauge
Width 62 Millimeter (mm)
Sensor Type Ruby fixed
Height 28 Millimeter (mm)
Weight 79 Grams (g)
Size 101x62x28mm
Material Plastic
Display 128×48 dot matrix LCD
Measuring Range 0.0-2000μm
Application Other
Color Blue
Length 101 Millimeter (mm)
Grade Industrial
Accuracy ≤±(3%H+2μm), H is the standard value

LS220H Dry Film Thickness Gauge Trade Information

FOB Port Hong Kong
Supply Ability 1000 Unit Per Month
Delivery Time 5 Days
Sample Policy Contact us for information regarding our sample policy
Packaging Details LS220H coating thickness gauge*1 Fe zero-adjustment plate*1 NFe zero-adjustment plate*1 Standard film*1 User manual*1 Drawstring bag*1 Certificate / Warranty card*1 1.5V AAA alkaline battery*1
Main Export Market(s) Central America, Australia, Eastern Europe, Middle East, South America, Asia, Western Europe, North America, Africa
Main Domestic Market All India
Certifications LS220H dry film thickness gauge conforms to the following standards: GB/T 4956-2003 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness

Product Description

Powerful and dual-use for ferrous and non-ferrous substrate

Dual-use probe for both iron and aluminum. The dry film thickness gauge has intelligent identification of measurement substrate and fast automatic transfer

Precise measurement and good repeatability

The accurate measurement data and good repeatability to ensure that it passes the inspection of Chinese national metrological testing

Available in three different modes

The LS220H coating thickness gauge has three measurement modes:Fe mode, NFe mode and Fe/NFe mode

Small, Lightweight and Portable

The LS220H dry film thickness gauge has simple design and small size. It is easy to carry and operate

High-quality digital probe ensures accurate measurement and stable data

The advanced digital probe is used to keep the zero position stable for a long time without drifting. The test data is stable after testing the same position for multiple times

Robust and durable

Ruby probe with abrasion and corrosion resistance to ensure long service life. Avoids errors caused by wear

With temperature compensation technology, the gauge can be used at minus 20 degrees Celsius.

Suitable for testing coatings on ultra-thin substrates

Available in English and Chinese

Other Products in 'Coating Thickness Gauge' category

LS223 Coating Thickness Gauge Price Range : 338.00 - 388.00 USD ($)/Set Minimum Order Quantity : 2 Application : Other Measuring Range : Fe:0.05000μm NFe:0.03000μm Color : Gray Grade : Industrial Length : 126 Millimeter (mm) Product Type : Coating Thickness Gauge Usage : Measure coating on ferrous/nonferrous substrates Width : 66 Millimeter (mm) Weight : 160 Grams (g) Height : 35 Millimeter (mm) Size : 126x66x35mm Material : Metal, Plastic Accuracy : ≤±(3%H+2μm):03000μm, H is the standard value ≤±(5%H+2μm):30005000μm, H is the standard value Sensor Type : Ruby fixed Display : 128×64 dot matrix LCD

Send Inquiry

LS221 Coating Thickness Gauge Price Range : 230.00 - 260.00 USD ($)/Set Minimum Order Quantity : 2 Application : Other Measuring Range : 0.02000μm Color : Blue Grade : Industrial Length : 101 Millimeter (mm) Product Type : Coating Thickness Gauge Usage : Measuring the car paint thickness Width : 62 Millimeter (mm) Weight : 114 Grams (g) Height : 28 Millimeter (mm) Size : 101x62x28mm Material : Plastic Accuracy : ≤±(3%H+2μm), H is the standard value Sensor Type : Ruby fixed Display : 128×48 dot matrix LCD

Send Inquiry

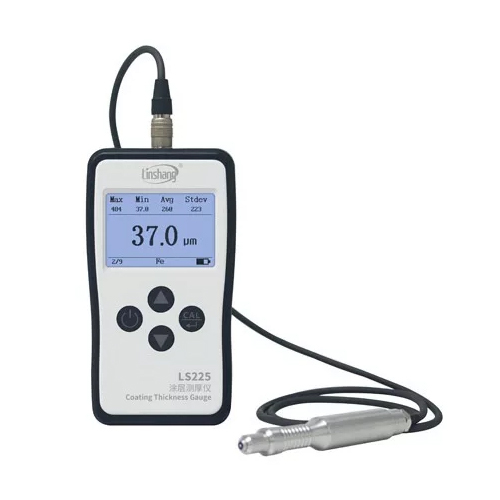

LS225 with F500 Plating Thickness Gauge Price Range : 670.00 - 720.00 USD ($)/Set Minimum Order Quantity : 10 Application : Other Measuring Range : 0.0500μm Color : White Grade : Industrial Length : 148 Millimeter (mm) Product Type : Plating Thickness Gauge Usage : Color Measurement And Color Comparison Width : 76 Millimeter (mm) Weight : 275 Grams (g) Height : 26 Millimeter (mm) Size : 148x76x26mm Material : Plastic
